Dzięki systemowi automatycznego odwracania kartek, D502 automatycznie drukuje dwustronnie na papierze ciętym.-

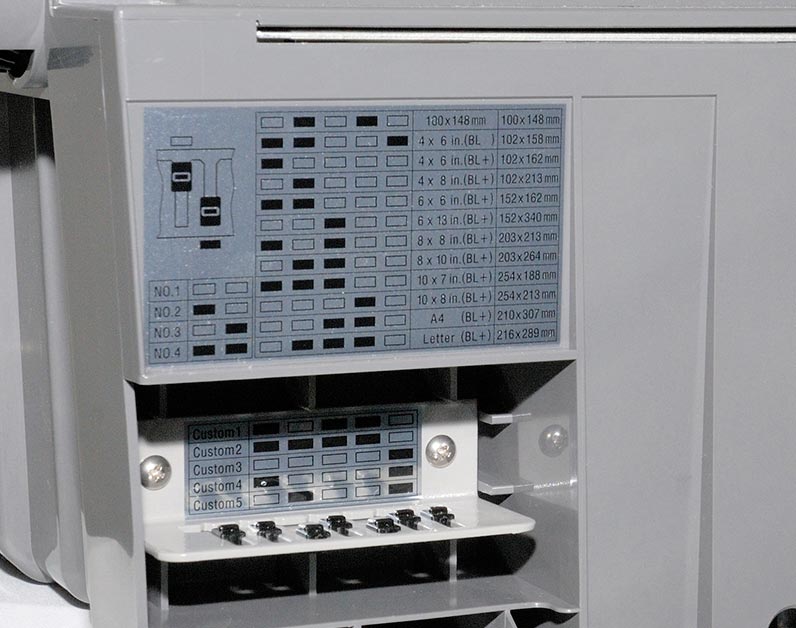

Dzięki kodom w zasobniku na papier cięty, maszyna rozpoznaje jaki papier znajduje się w zasobniku.
-

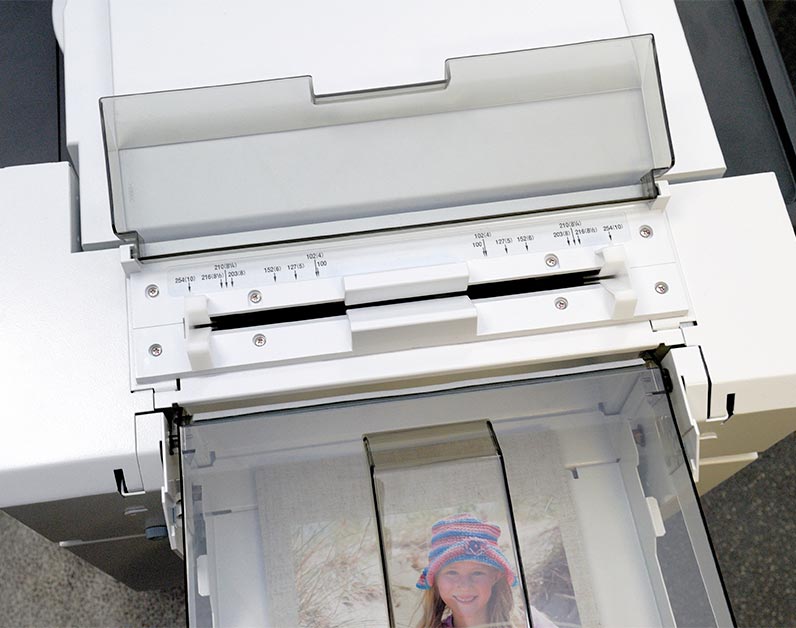

Podajnik pojedynczych kartek ( I okładek fotoksiążek), jest wyposażony w prowadnice I oznaczenie dla każdego używanego papieru.

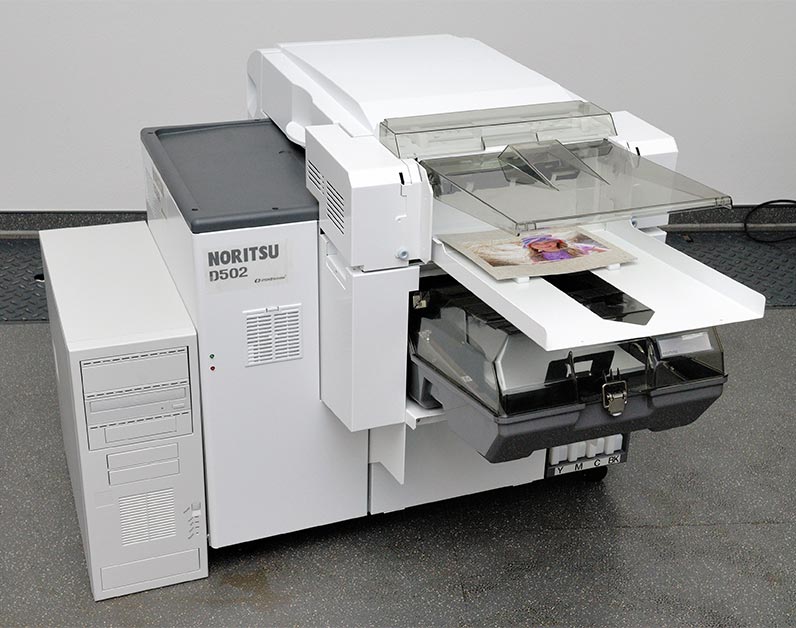

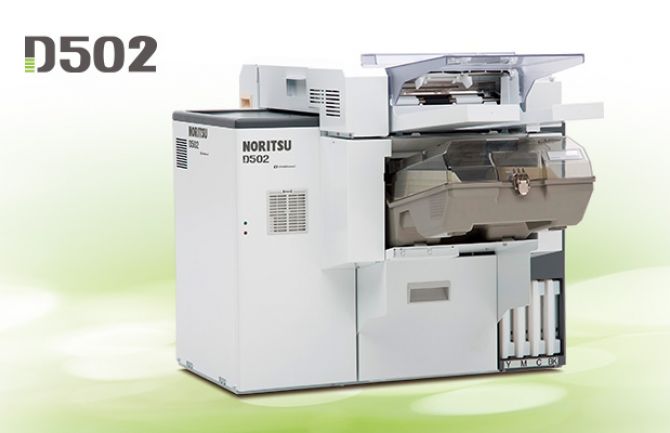

Noritsu D502
Duplex printer with automatic sheet-turning device
The D502 single sheet duplex printer is especially suitable as a supplement to wet or dry volume-printing devices for the production of customized value-added photo products such as photo books, greeting cards and calendars. It can also be used as an independent single device with which not only double-sided printed image products, but also “simple” (single-sided print) images can be output. Typical output is of digital images, but also analogue material – using a film scanner. The device is conveniently supplied with paper by a tray or – for larger formats – via the single-sheet feeder.
Features
| Type | Inkjet duplex device for paper sheets for value-added photo production; with automatic sheet-turning device for duplex printing |
|---|---|
| Input* | Digital image data in file formats JPEG, TIFF, PNG, RAW as DNG and S/W, CN and U material and reflective materials after digitizing using optional scanners |
| Paper widths Paper step lengths |
102, 152, 203 and 254 mm from 89 mm to 381 mm |
| Processing formats (nominal sizes)** | For single-sided printing from 10 x 15 cm to A4 (21,0 x 29,7 cm) For duplex printing from 10 x 15 cm to A4 (21.0 x 29.7 cm) |
| Maximum output format (nominal size)** | Single-sided 24.5 x 43.2 cm with manual feed |
| Processing capacity (nominal output)** | Single-sided 510 pictures/h 10 x 15 cm at 720 dpi, duplex 190 pictures/h Single-sided 220 pictures/h A4 at 720 dpi, duplex 78 pictures/h |
| Printing system | Piezo-inkjet technology; 4 colours with dot size manipulation (DSM) |
| Resolution (selectable) | 720 x 720 dpi |
| Special features | Duplex printing of paper sheets using paper magazine and automatic sheet-turning device; paper widths up to 254 mm (10 inches) manually, 203 mm from the tray: standard delivery with one tray for paper sheets; paper deck with easy-to-clean absorbers |
| Space requirements and empty weight of device | Net floor space approx. 0.34 m²; working area with movement zone at least 2.5 m² Weight without paper approx. 120 kg |
| Power connection and output | 230 V AC socket / 16 A |
| System-compatible accessories (optional) | Noritsu Film Scanner models LS-600, LS-1100, HS-1800; RIP*-PC (Raster Image Processor); “High Photo Transfer” customer terminal and retailer/customer order processing software |
| Additionally | Easy operation with EZ Controller, an up-to-date control computer (workstation); network-enabled via RIP PC |
Comments on *
Input at EZ Controller or system-compatible HPT terminal using currently available digital storage media (detailed, binding compatibility and capacity specifications of storage media as per device specifications and current, device-specific device manual)
Comments on **
Detailed, binding processing format and performance specifications as per device specifications and current, device-specific device manual.
Devices may vary depending on country and equipment, and may deviate in individual points from the data specified here.
Greeting cards, calendars, photo books
